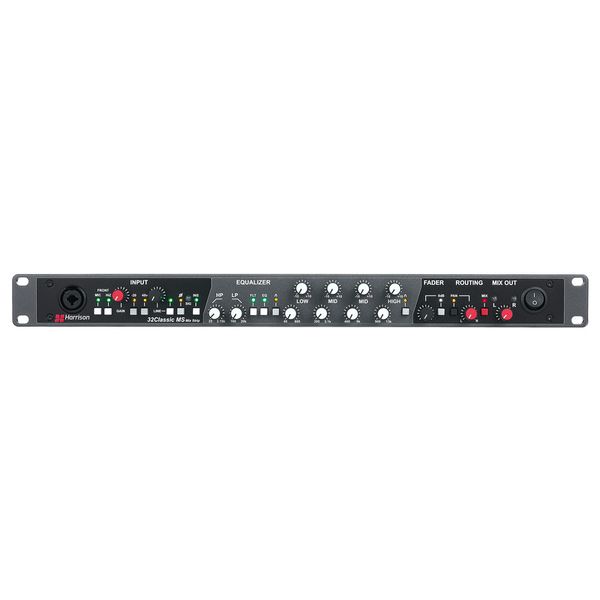

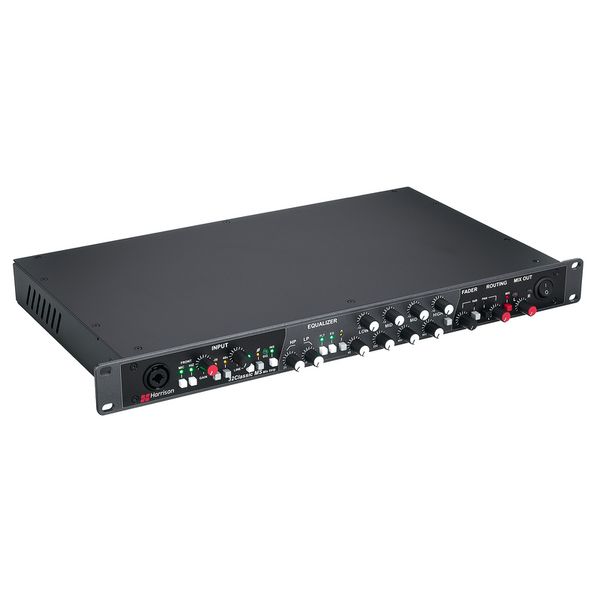

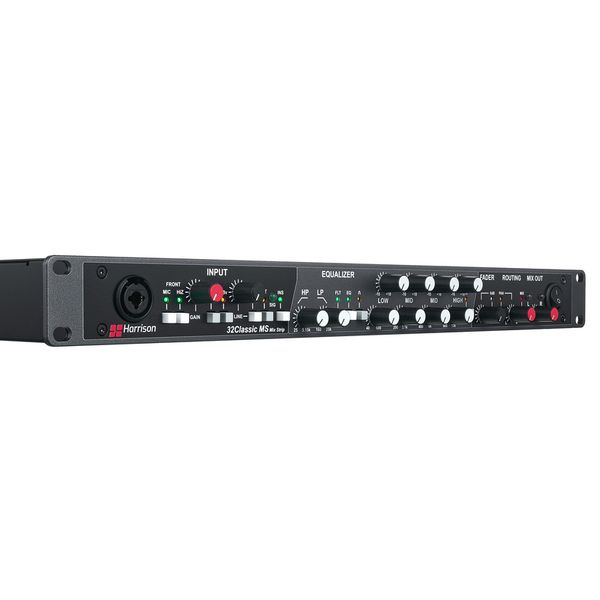

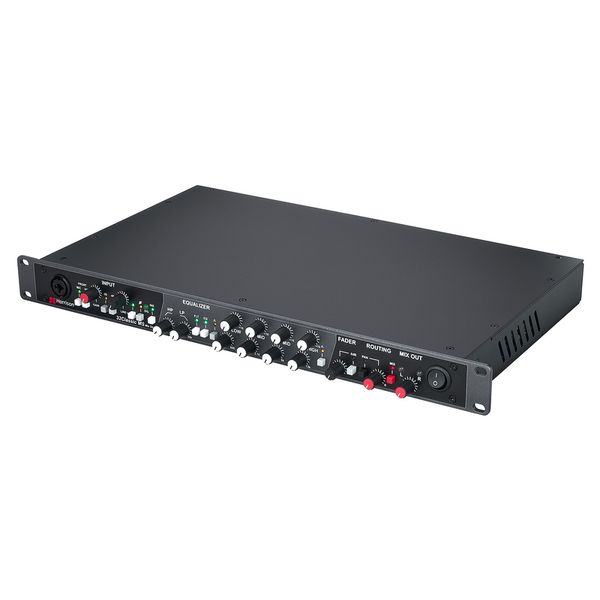

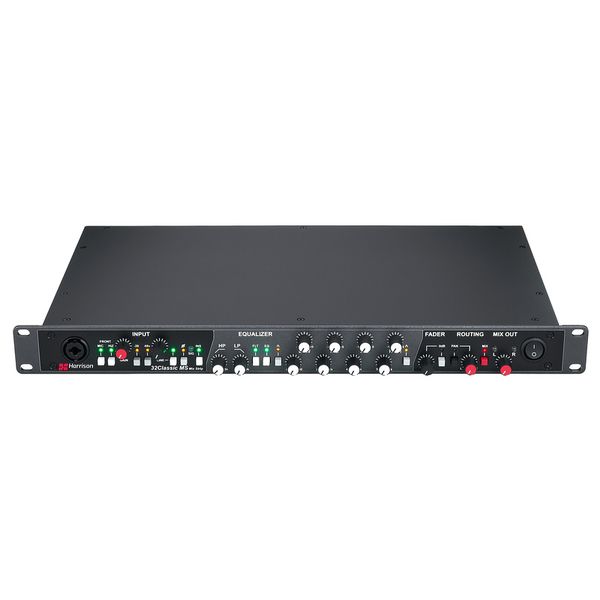

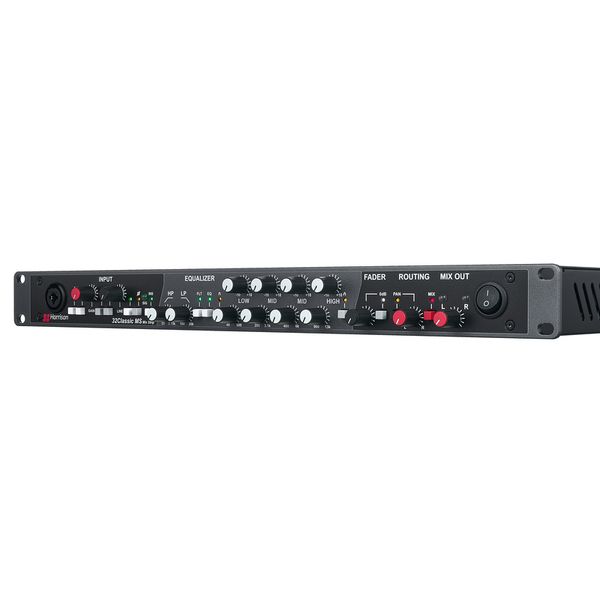

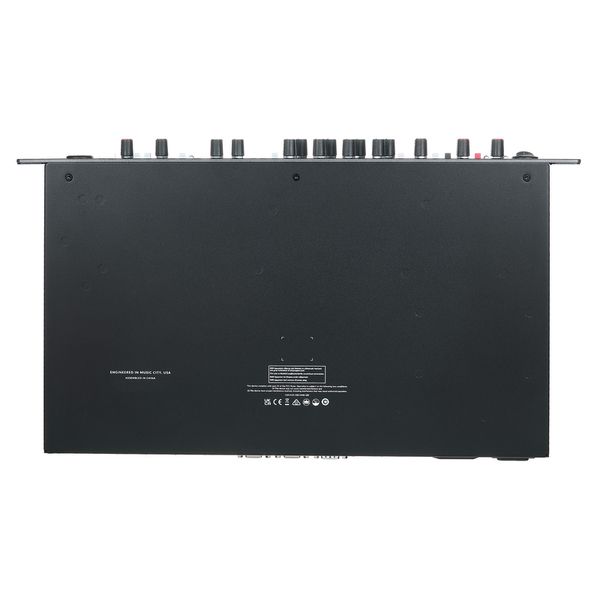

Harrison Audio 32Classic MS Mix Strip

Harrison Audio 32Classic MS Mix Strip

Harrison Audio 32Classic MS Mix Strip

Harrison Audio 32Classic MS Mix Strip

Harrison Audio 32Classic MS Mix Strip

Visa översättning

Channel Strip

Input Transformer: Jensen JT-MB-CPCA
Low-high pass filter with 3 dB resonance peak
4-band parametric EQ
Built-in mix bus with summing function
Pre and post fader direct outs
Phase reverse switch
Hi-Z impedance switch
-20 dB pad
48 V phantom power
Controls for fader, panorama, mix bus out and 0 dB button

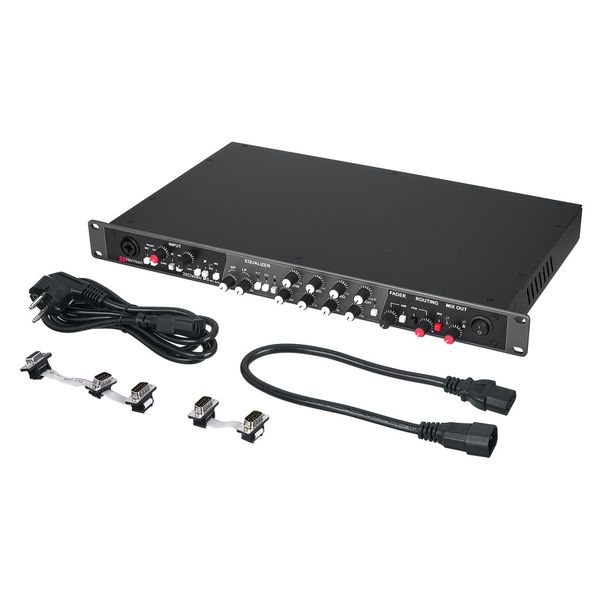

Multiple 32Classic MS units are cascadable (incl. ‘jumper cable’ for cascading)
Type: 19" 1 U

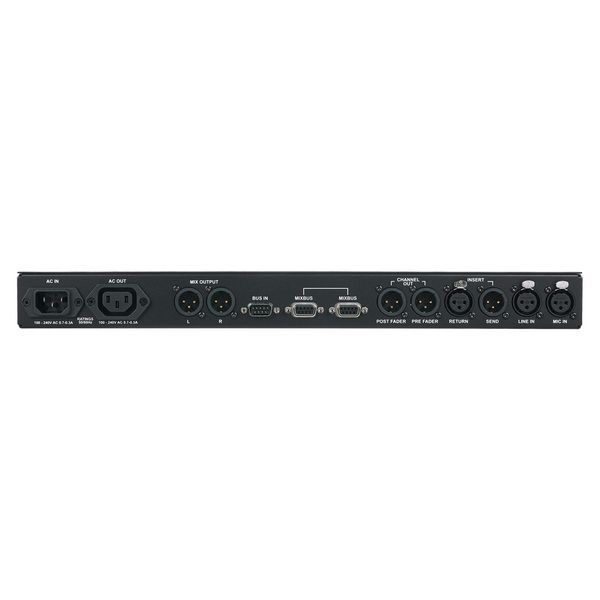

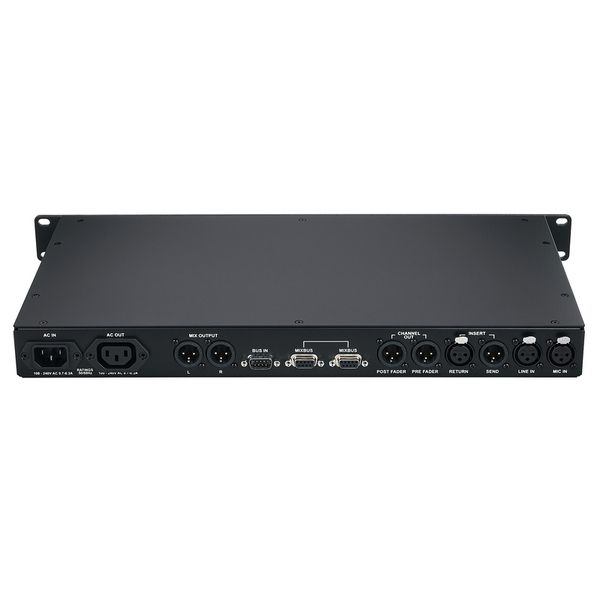

Connectors:

One microphone/instrument combo input XLR / 6.3 mm jack
One microphone input: XLR
One line input: XLR
Send / Return: XLR
One XLR output: Post fader
One XLR output: Pre fader
Two line outputs: XLR
Two serial mix bus outputs
One serial mix bus input
AC pass through

30 dagar öppet köp

3 års Thomann garanti

Tillgänglig sedan Februari 2025

Artikelnummer 609653

försäljningsenhet 1 Styck

Channels 1

Number of microphone inputs 2

Instrument input Yes

Tubes No

Compressor/Limiter No

Equalizer Yes

De-Esser No

Phantom power Yes

Phase Reverse Yes

External effect loops Yes

Analogue Outputs XLR

Digitale Outputs 0

Headphone connection No

Level Meter No

Design 19" / 1U

24 290 kr
